Packed container house is a modular construction product based on a steel frame and lightweight wallboard structural system. The product consists of a top frame, bottom frame, corner posts and 14 interchangeable wall boards, which can be packed and packaged for easy transport by land or sea.
| No. | Product | Specs | Qty | Unit | price (usd/set) | EXW(FACTORY) |
| 1 | flat pack container house | External dimensions L6055*W 2438*H2650 | / | set | US$1,790.00 | packing fee included (The cost of protective film is extra) |
Attachment 1-Material List (packing: 6 sets of 40 HQ containers)
| Serial number | Project | Reference indicators | Technical requirements | Optional |
| 1 | Wall | Wallboard | 50 mm thick rock wool colored steel plate, base material front 0.3 mm, reverse 0.3 mm; bulk density 60 | / |
| 2 | Structure | Corner | Welding corner, Q235B material, zinc plating 12μm | |
| 3 | Top frame side beam, end beam | Galvanized steel roller beam, Q235B material, plate thickness t 2.5 mm,160 mm high | ||
| 4 | Top beam | C steel, zinc layer 20~25μm, thick t1.5mm | ||
| 5 | Bottom frame side beam, end beam | Galvanized steel roller beam, Q235B material, plate thickness t 2.5mm, 160 mm high | ||
| 6 | Bottom beam | C steel, zinc layer 30~35μm, thick t 2.0mm | ||
| 7 | Angle column | Q235B material, galvanized sheet, plate thickness t2.5mm, zinc layer 20~25μm, bolted to top and bottom frames | ||
| 8 | Angle column end plate | 8.0 mm thick hot-rolled end plate, Q235B material | ||
| 9 | Floor structure plate | Sanding plate (Magnesium oxide board),18 mm thick | ||
| 10 | Structure connection | M12×40 high-strength bolts | ||
| 11 | Outer roof | Colored veneer bite 0.45 mm、360° bite | ||
| 12 | Inner roof | 0.3 mm pressure plate ceiling | ||
| 13 | Top frame insulation | 50 mm insulation thickness | ||
| 14 | Decoration | Windows | A double-layer toughened glass; Size W1100*H1120×2; | |
| 15 | Door | General steel doors, B840mmxH2035mm | ||
| 16 | Door locks and hardware | Double door lock | ||
| 17 | Ground handling | Grey PVC floor leather, t1.2mm | ||
| 18 | LCL ceiling | Color-coated steel sheet with 9016 gray and white | ||
| 19 | Interior corner line | Color-coated steel sheet bending decorative corner 9016 gray | ||
| 20 | Electrical | External power supply | Industrial plug and socket 1, placed inside top frame end | |
| 21 | Pipeline laying | Concealed strong and weak electrical pipelines | ||
| 22 | Wiring | Line 4 m2; lighting line 1.5 m2; socket line 2.5 m2 | Optional: voltage line of exporting country | |
| 23 | Switch | switch 1, circuit breaker | / | |
| 24 | Socket socket | five-hole socket 4 1 high 3 low | ||
| 25 | Lamps | LED light.110V-50HZ-T5-2*22W | Optional: voltage line of exporting country | |
| 26 | Weight | - | ≥1.6 t/m | / |
| 27 | Paint | Spray, 150μm thick |
Extra dimensions | L6055*W2990*H2896/L6055*W2438*H2896 (export) |
Quick installation
combination flexible
supporting complete
safe and durable transport

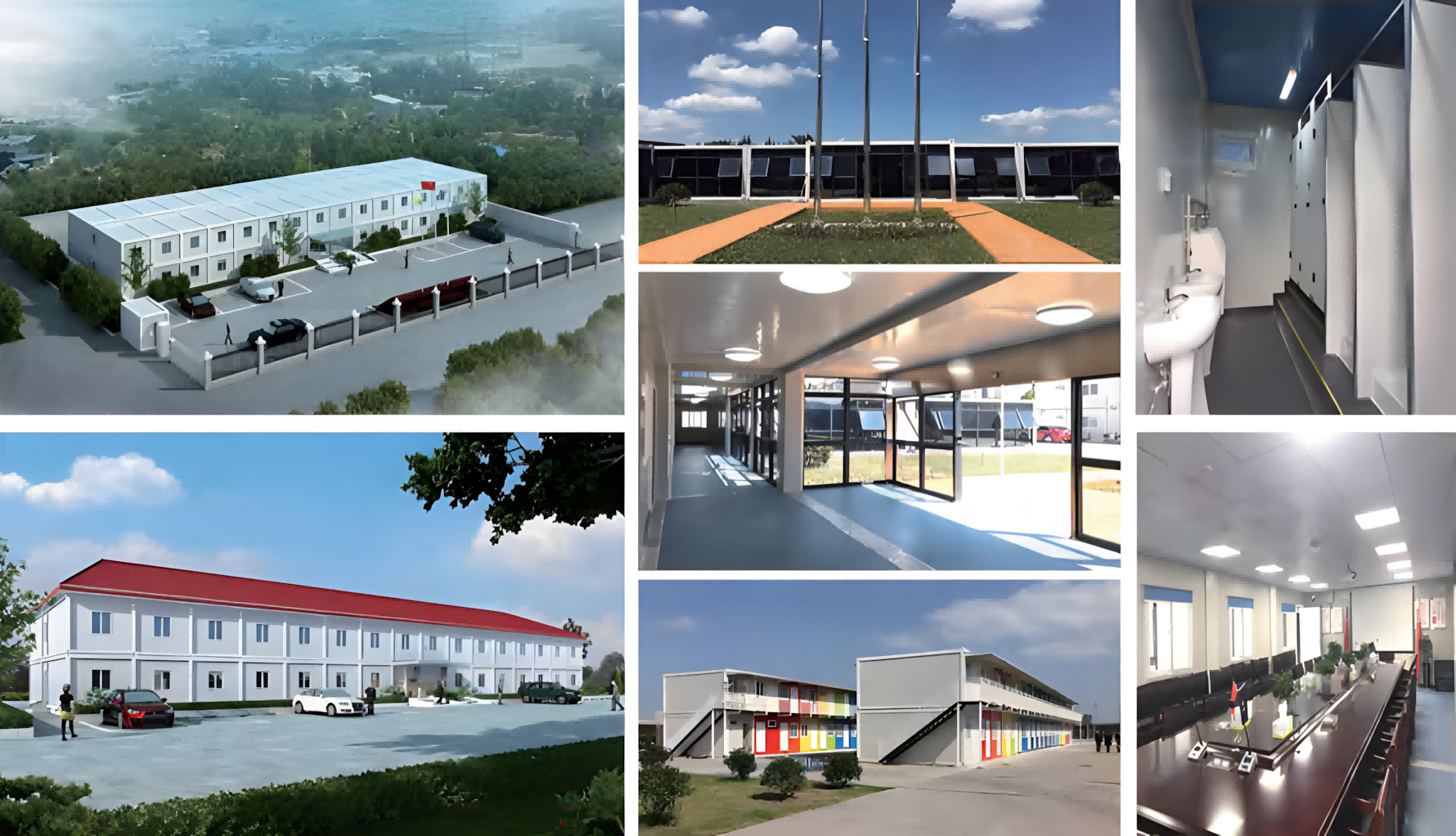

Can be used as office, accommodation, restaurant, bathroom and combination of large space, can meet the construction site barracks, field operation barracks, municipal resettlement housing and various commercial housing needs, is currently widely used in China, Europe, Japan, the Middle East, Southeast Asia, Africa and other regions.
